VIDEO ENCODING

• Interfaces: 1x Composite Input, 1x HDMI Input* and 1x GigE
• Supported Resolutions: 1080p60, 1080p50, 1080i30, 1080i29.97, 1080i25, 720p60, 720p59.94, 720p50, 576p50, 576i25, 480p60, 480i30, 480i29.97, CIF (352 x 240)
• Video Codec: H.264
• Output Formats: MPEG-2 TS, RTP, RTMP and TSRTP
• Video Bitrate: Customizable 450 kbps to 15 mbps
• Features: Supports unicast and multicast

*Non-HDCP Content Only

AUDIO ENCODING

• Interfaces: Embedded HDMI Audio
• Audio Codecs: AAC-LC ADTS and AAC-HE ADTS
• Audio Bitrate: 12 to 384 kbps

SPECIFICATIONS

• Software Control: HTTP-based GUI: Encoder Configuration
• Power: 5V External Power Supply, Low Power Consumption, 5W typical
• Dimensions: 3.88 x 3.19 x 0.81 in (98 x 81 x 21 mm)
• Weight: 0.49 lb (221 g)
• Temperature and Humidity: Operating- 0 to 45 degrees C at 20-80% relative humidity, Storage: -20 to 70 degrees C at 20-80% relative humidity

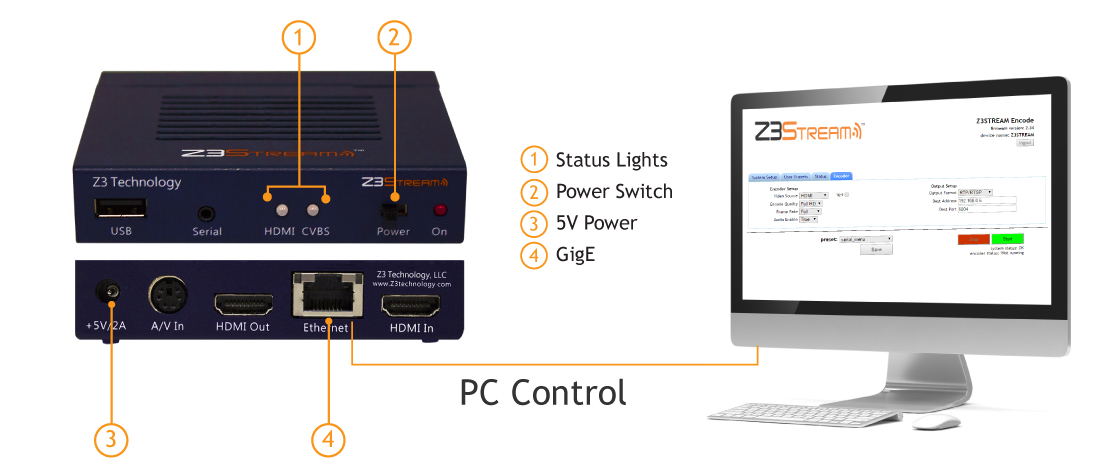

OPERATING CONTROLS

PACKAGE

• Package Contents: 1x Z3Stream Encoder, 1x 5V Power Supply, 1x Ethernet Cable, 1x HDMI Cable and 1x Composite Cable
• Support: Paid support options available. Contact Z3 Technology for more information.
